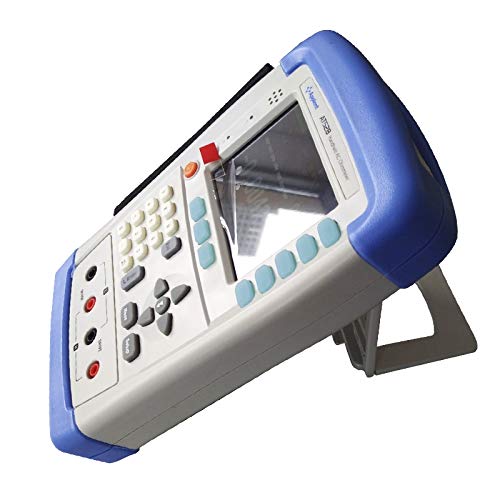

AT528 Handheld Digital Battery Meter with TFT True-Color LCD Display Battery Internal Resistance Tester

AT525 handheld battery tester adopt high-performance 32dgt ARM micro processor, can be used to test voltage and internal resistance of battery, it is upgrade version of AT528, it is applied to UPS online measurement. Test the resistance 0.001mΩ – 3.3kΩ, 0.0001V - 60V DC voltage with the resistance max reading of 3300dgt and voltage 60,000dgt. The indication beat is controlled under 5 digits. AT525 can test open-circuit voltage accurately, adding automatic sorting function and beep set, is applied to automatic sorting system to complete production line test. Equipped with USB interface, can be used for remote control, data acquisition and analysis. It is suitable for flow line inspect of storage batteries. SPECIFICATIONS AT525 Internal Resistance Online TesterAT525D Internal Resistance Online TesterAT528 Handheld Battery TesterAT528L Handheld Battery Tester ParametersAC resistance, DC voltage AccuracyR: 0.5%±5dgt V: 0.05%±5dgtR: 0.5%±5dgt V: 0.1%±5dgtR: 0.5%±5dgt V: 0.5%±5dgt Measurement RangeR: 0.001mΩ~3.3000Ω V: 0.0001V～60.000VR: 0.001mΩ – 3.3000Ω V: 0.0001V- 200.00VR: 0.01mΩ – 2.2kΩ V: 0.0001 V- 50.00VR: 0.1mΩ – 200.0Ω V: 0.001V – 50.00V Signal SourceAC: 1kHz Open-circuit Voltage: <30mv Current: <15mA RangeAutomatic, Manual, Nominal, 4 rangesAutomatic, Manual, Nominal. 6 rangesAutomatic, Manual, Nominal, 4 ranges Speed1 time/second20 times/second, 10 times/second, 3 times/second2 times/second Result Display ABS/PER/SEQ Display MaxResistance: 3300 Voltage: 60,000Resistance: 2200 Voltage: 50000 Max ResolutionResistance: 0.01mΩ Voltage: 1mVResistance: 0.1mΩ Voltage: 1mV AdjustmentShort-circuit correction for each range ComparatorVoltage compare separately, resistance compare separately, voltage and resistance combination compare GD/NG sorting result display, beep TriggerInternal, Manual, Remote Test Terminal4 terminal shielding ( 2 check terminal and 2 driving terminal) and external shielding ground section Inter
