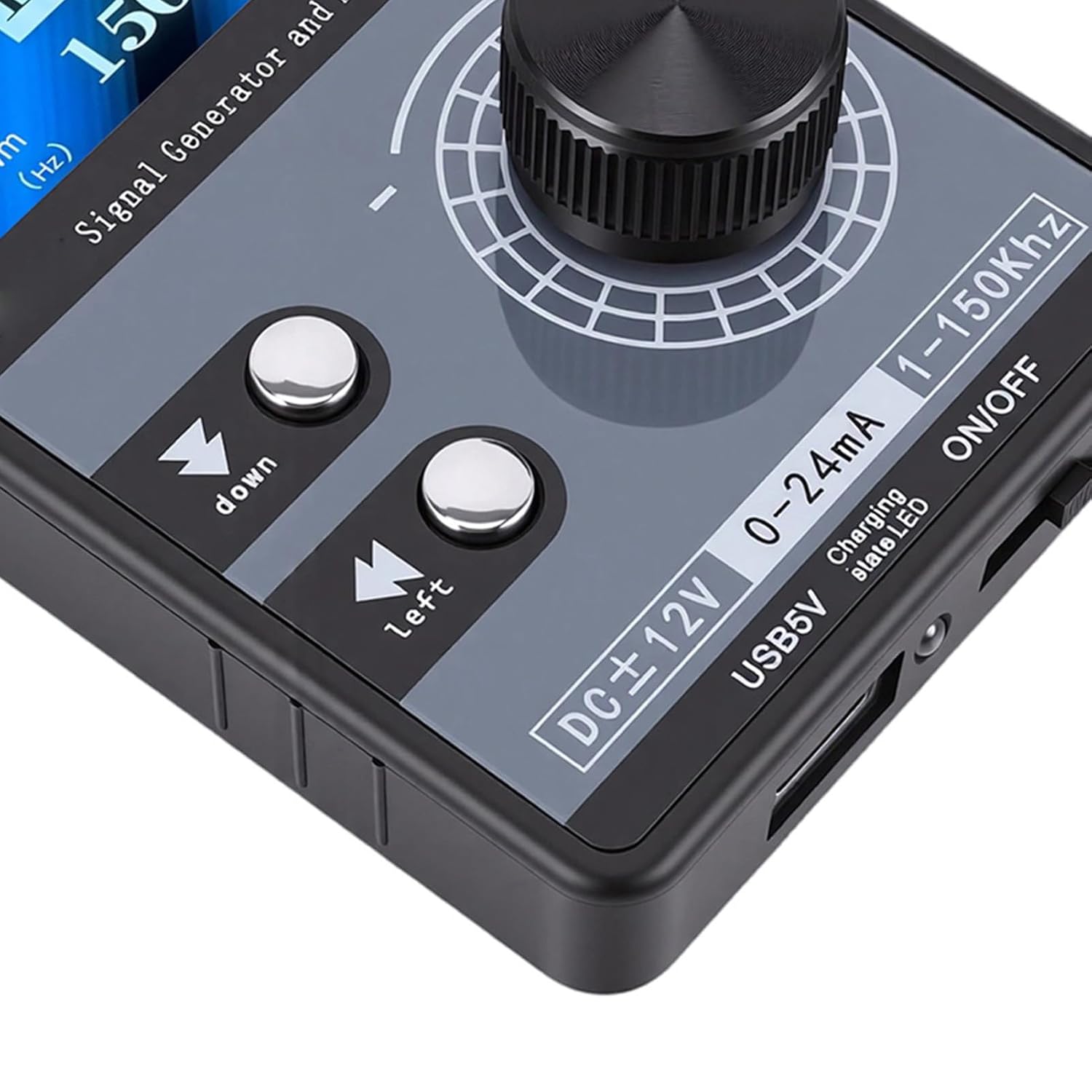

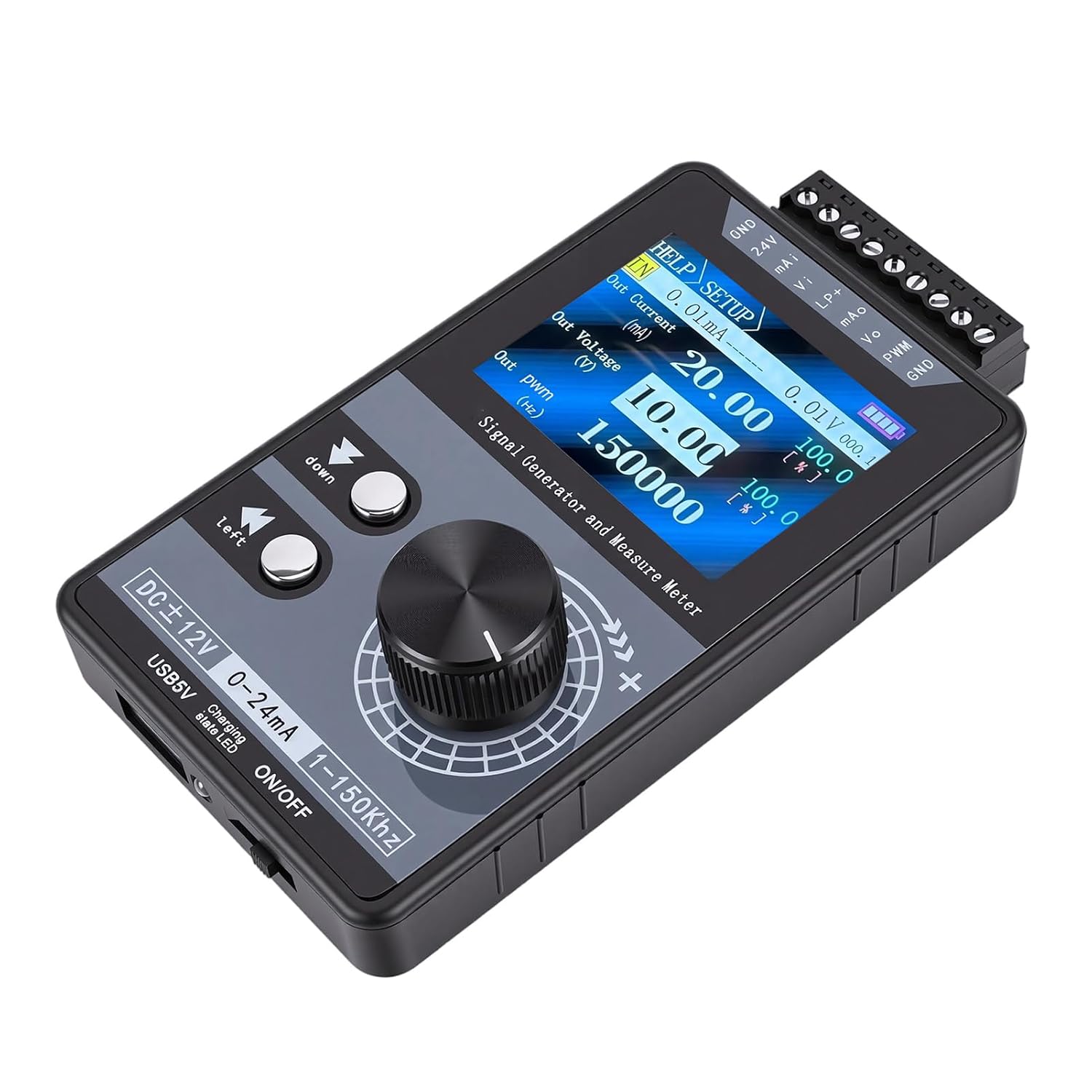

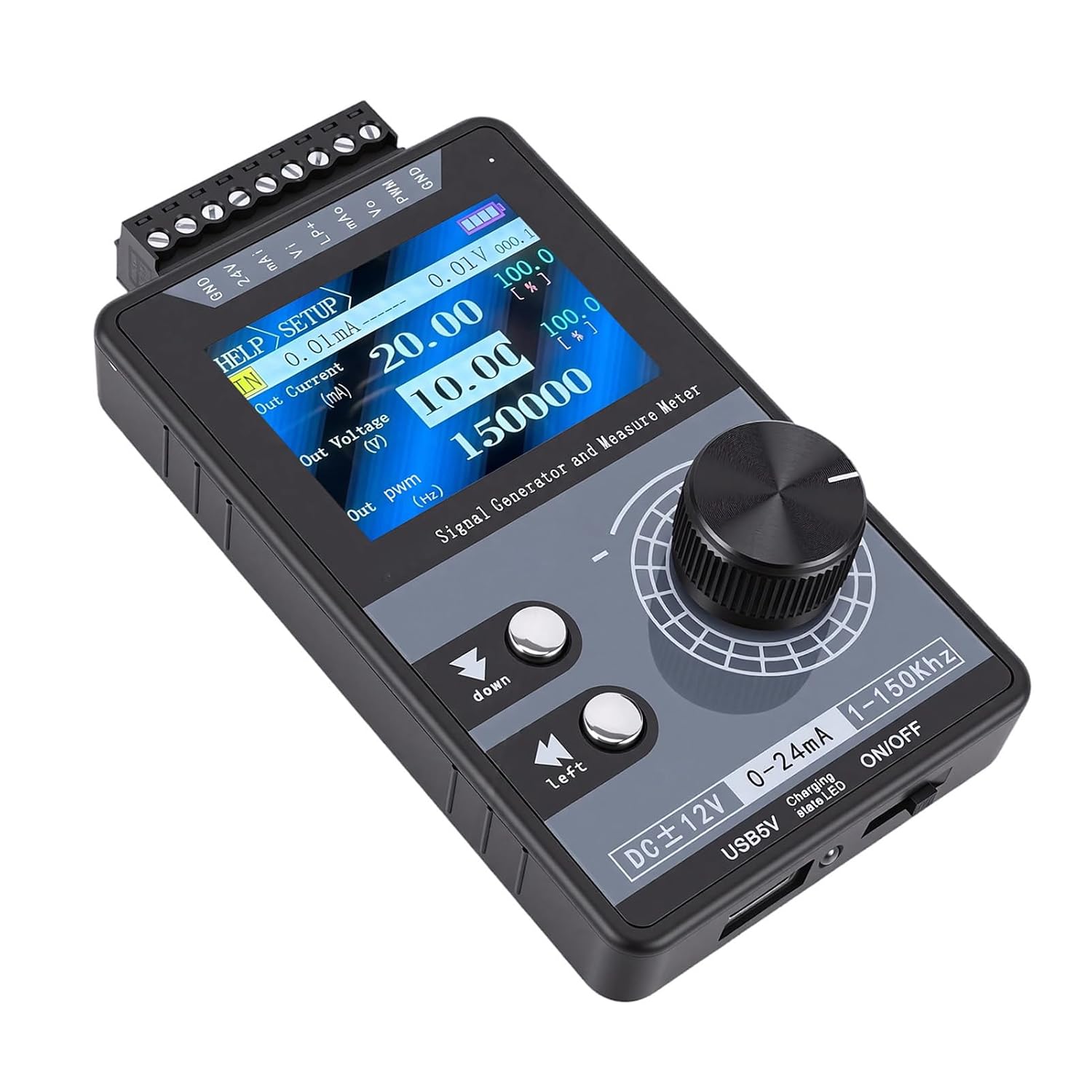

GOWENIC Adjustable Signal Generator, 4 to 20mA DC Voltage Current Simulator, 1 to 150kHz Power Supply Interface Analog Simulator or PLC Controller Panel LED Test Calibration PWM Pulse

Product description Specification Item Type: Signal Generator Product Material: ABS Features: Color screen multifunctional signal generator (DC voltage and current output, with input measurement and PWM output) Voltage DC Analog Output Range: ±12V (With Short Circuit Protection), Voltage Measurement Range: ±50V Current DC Analog Output Range: 0-24mA (Short Circuit), Current Measurement Range: ±50mA Output Adjustment Range: Users can set it freely, such as 0-20mA, 4-20mA, 0-10V, 0-5V, etc. Users can also set the corresponding engineering display values PWM Pulse Square Wave Output: Adjustable frequency 1-150kHz, adjustable duty cycle 0-100 %; (High level 5V, current Manufacturer Contact Information 1

• Power Off Save: This signal generator saves output values when power is off, ensuring seamless work. Equipped with output short circuit, reverse connection and charging protective functions
• PWM Output: The PWM signal generator delivers 1-150 kHz adjustable frequency and 0-100 % duty cycle. Features 5V fixed high level output (<20mA drive current) and short circuit guard
• Current and Voltage Setting: Supports current output of 0-24mA, can be set. The factory default is 4-20mA, calibration accuracy is 0.05mA. The output resistive value is <500惟 and can be short circuited. Voltage output of 卤12V, can be set, factory default is 0-10V, calibration accuracy is 0.03V and it has short circuit guard
• Power Supply Options: This signal generator offers 3 power supply methods, supporting external terminal connection 24VDC, USB Type C cable, or powered by a rechargeable li battery (not included)
• User Friendly: Equipped with a 2.0 inch TFT color screen (320x240), all values are clearly displayed and easily viewed, and supports Chinese and English interface switching. Large knob encoder adjustment
