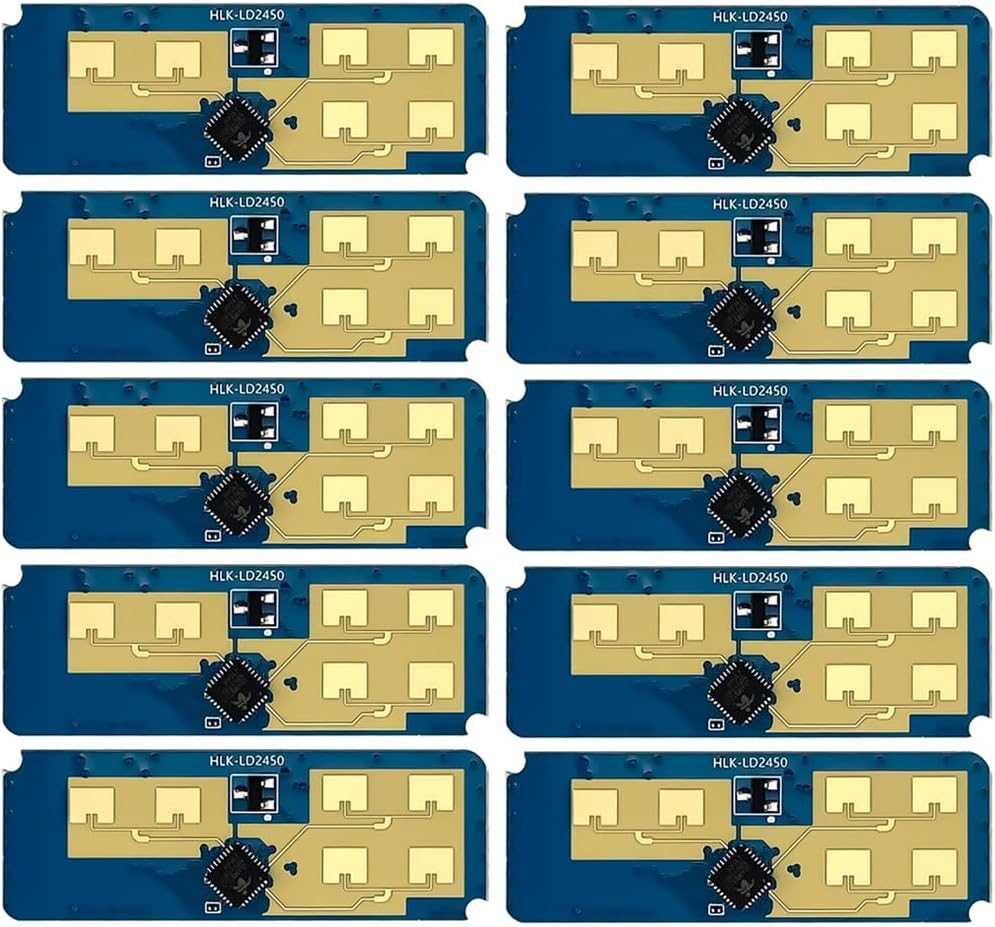

JMT HLK-LD2450 24GHz Trajectory Sensor ISM Smart Home Human Movement Tracking Ra·DAR Induction Module Distance Angle Speed Measurement (5Pcs)

HLK-LD2450 24GHz Trajectory Sensor ISM Smart Home Human Movement Tracking Induction Module Distance Angle Speed Measurement Product Description: The LD2450 is a 24G module, which can achieve real-time tracking of the position of the moving target in the detection area, and output the distance, angle and speed information of the moving target in the area through the serial port. It is mainly used in common indoor scenes, such as home, office and hotel, to realize the positioning and tracking of moving people. Product Features -Frequency: 24G-24.25GHz -Sweep bandwidth: 250MHz (CE/FCC compliant) -Modulation mode: FMCW -Power supply voltage : 5V(Typ.) -External Dimension : 15x40mm -Detection Angle : Azimuth ± 60° / Tilt ± 35 -Detection Distance : Maximum Sensing Distance 8m -Distance defense rate : 0.75m -Distance measurement accuracy : 0.15m -Angle Accuracy : 2° ~ 20 -Data refresh rate : 10Hz -Ambient temperature : -40°C~+85°C -Data format : Serial ASCIl output -Package: Default 1.5mmx4Pin Female (Customizable) The serial port baud rate is 256000. 1 stop bit, no parity bit. Configuration Tool Description After connecting the module, open the Configuration Tool and select the correct port number and serial port information when clicking Detect Device. After connecting the module, open the Configuration Tool, click Detection Device, select the correct port number and serial port information, and then click Start to get the moving targets in the detection area. Then click Start to get the moving target information in the detection area. Note: The serial port tool and the host tool can not be used at the same time.

• LD2450 Ra·dar Module: A Trajectory Module, which can achieve real-time tracking of the position of the moving target in the detection area, and output the distance, angle and speed information of the moving target in the area through the serial port.
• Using Scenes: It is mainly used in common indoor scenes, such as home, office and hotel, to realize the positioning and tracking of moving people.
• Detection Angle : Azimuth ± 60° / Tilt ± 35°. Angle Accuracy : 2° ~ 20°.
• Detection Distance : Max Sensing Distance 8m. Distance Defense Rate : 0.75m. Distance Measurement Accuracy : 0.15m.
• Data Format : Serial ASCIl output. Modulation Mode: FMCW. Sweep Bandwidth: 250MHz (CE/FCC compliant). Frequency: 24G-24.25GHz.
• The Serial Port baud rate is 256000. 1 stop bit, no parity bit. Package: Default 1.5mmx4Pin Female.
• Warm Tips: The serial port tool and the host tool can not be used at the same time.
